Customized Solutions
Deep Bottom
Stackable Containers

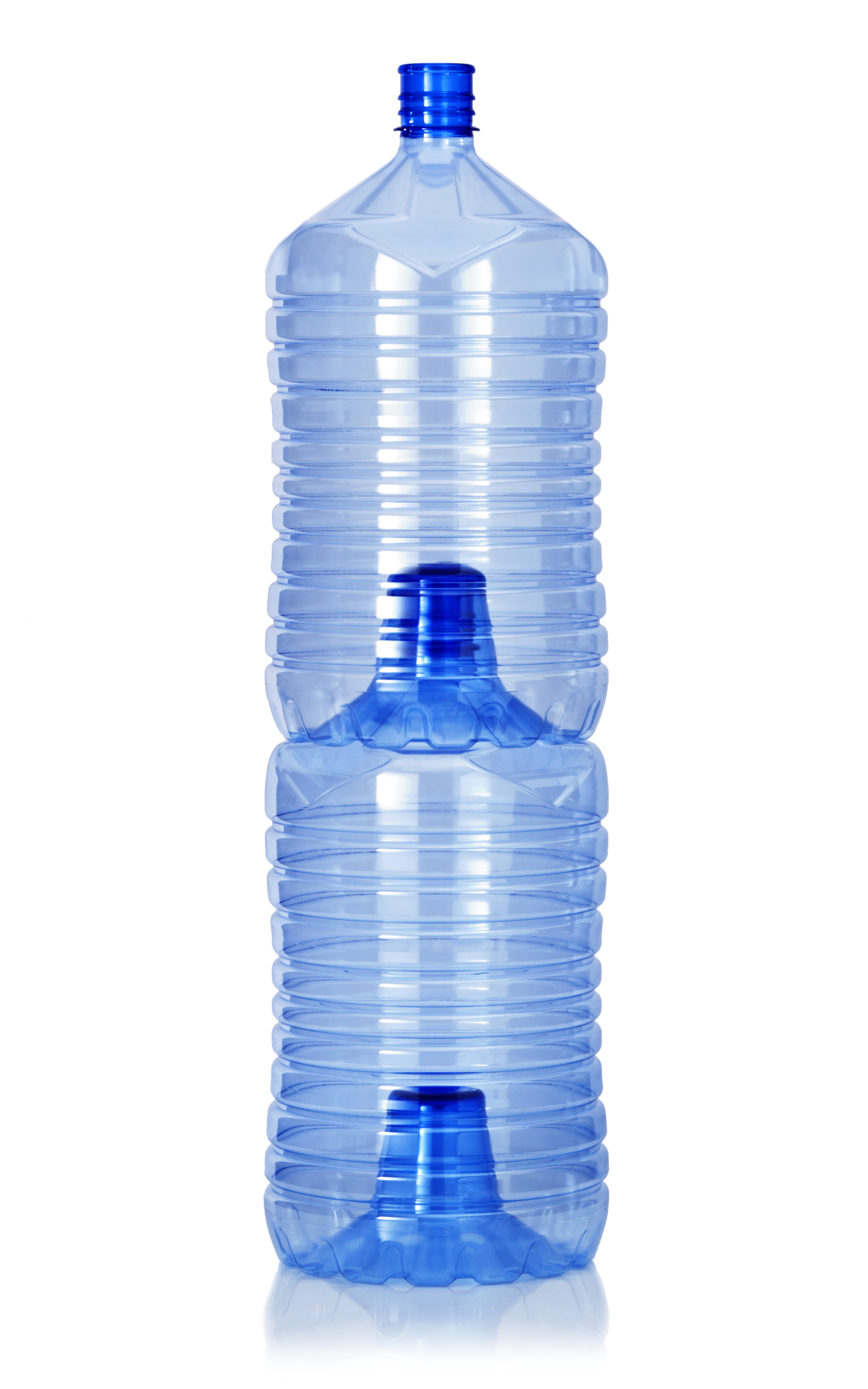

Technology for creating stackable containers, it is used to replace HDPE containers with PET containers. This allows a weight reduction up to 60%, a saving on logistics costs and to have a container with a customized design that makes it ideal for storage.
The “Deep Bottom” system permits to blow containers with a peculiar shape of shoulder and base: the latter, thanks to the particular mechanical process applied during the blowing phase, is deeper and able to accommodate the shoulder, neck and, if present, the handle of another container. The result is containers with high stability during the storage.
Handlematic
External Handles

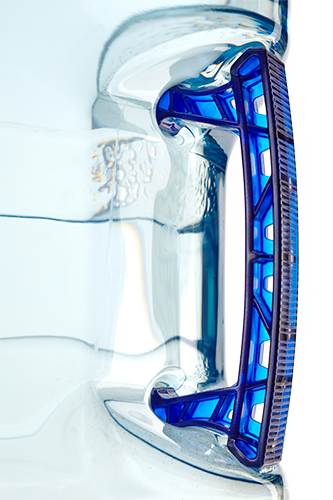

This is a system for an automatic application of external handles, which can be applied during blowing.
The handle geometry is made in accordance with the process considering that a part of it is subjected to the pressure of the blowing added to the stress produced by the plastic that wraps the anchoring points.
Hot Fill
Sensitive products

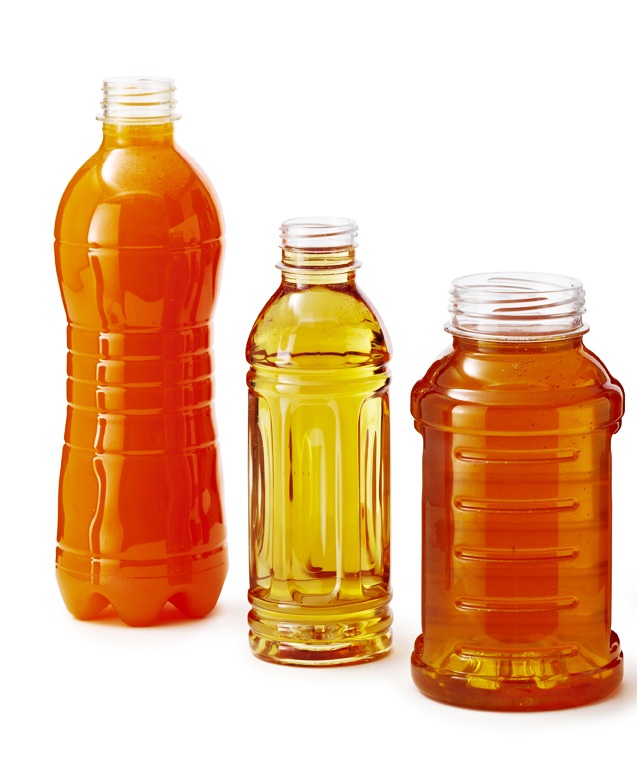

Microbiological spoilage sensitive products, like Juices, isotonic Beverages, Tea, and Coffee, require special treatments during filling and capping. They need to be pasteurized to have a longer shelf-life. The Hot-filling process allows to pasteurize the product and sterilize the container and the cap at the same time.
Some requirements are needed for this process, like special PET resin for HF application and hot filling line for pasteurization of the product, sterilization and cooling of the container.
It is also required a specific Heat Set blowing process with thermoregulation of the heated blowing molds, able to increase bottle crystallinity and a re-circulation of cold air inside the mold to avoid that bottles get deformed at molds opening.
A special bottle design is finally request for a container with heat resistance and able to absorb volume change without visible distortion and to give the bottle mechanical properties.
Neck Orientation
neck in a specific relative position
Neck orientation is a particular technology for blowing containers with the neck in a specific relative position.
It allows to manage special preforms by orienting them always in the same position thanks to specific device and software.

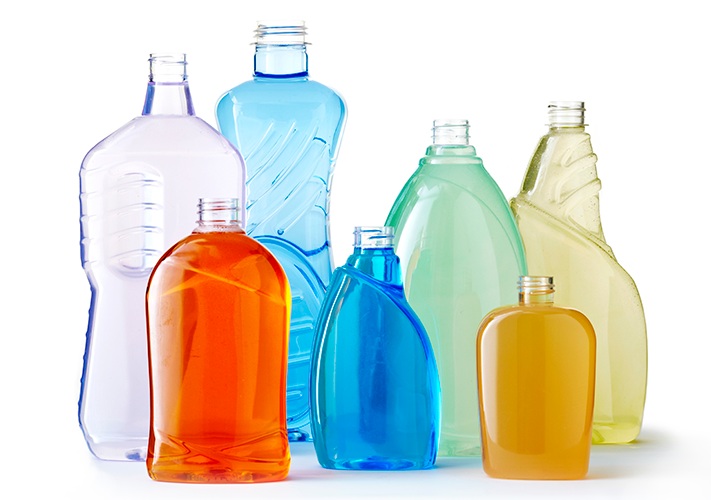

This process could be combined with preferential heating to produce containers with different irregular shapes, like a trigger bottle, often required for cosmetics and medical products.
Preferential Heating
Selective heating technology
Neck orientation is a particular technology for blowing containers with the neck in a specific relative position.
It allows to manage special preforms by orienting them always in the same position thanks to specific device and software.
This process could be combined with preferential heating to produce containers with different irregular shapes, like a trigger bottle, often required for cosmetics and medical products.
Deep Bottom
Stackable Containers
SW machines are designed to produce wide mouth PET containers by a two-stage stretch-blow process of containers from preforms with large neck diameter.
The type of container is quickly changed by simply replacing the mold, changing the preform carriers and making any quick adjustments required by the different types of preform involved.
Containers and jars from 180mm and capacity of 12 Lt.
Handlematic
External Handles
SW machines are designed to produce wide mouth PET containers by a two-stage stretch-blow process of containers from preforms with large neck diameter.
The type of container is quickly changed by simply replacing the mold, changing the preform carriers and making any quick adjustments required by the different types of preform involved.
Containers and jars from 180mm and capacity of 12 Lt.
Hot Fill
Sensitive products
Microbiological spoilage sensitive products, like Juices, isotonic Beverages, Tea, and Coffee, require special treatments during filling and capping. They need to be pasteurized to have a longer shelf-life. The Hot-filling process allows to pasteurize the product and sterilize the container and the cap at the same time.
Some requirements are needed for this process, like special PET resin for HF application and hot filling line for pasteurization of the product, sterilization and cooling of the container.
It is also required a specific Heat Set blowing process with thermoregulation of the heated blowing molds, able to increase bottle crystallinity and a re-circulation of cold air inside the mold to avoid that bottles get deformed at molds opening.
A special bottle design is finally request for a container with heat resistance and able to absorb volume change without visible distortion and to give the bottle mechanical properties.
Neck Orientation
neck in a specific relative position
Neck orientation is a particular technology for blowing containers with the neck in a specific relative position.
It allows to manage special preforms by orienting them always in the same position thanks to specific device and software.
This process could be combined with preferential heating to produce containers with different irregular shapes, like a trigger bottle, often required for cosmetics and medical products.
Preferential Heating
Selective heating technology
Neck orientation is a particular technology for blowing containers with the neck in a specific relative position.
It allows to manage special preforms by orienting them always in the same position thanks to specific device and software.
This process could be combined with preferential heating to produce containers with different irregular shapes, like a trigger bottle, often required for cosmetics and medical products.
